01-Endoframe: Basics “Disassemble” by Ali Torabi (40min)

Assemble polysurfaces to shell, joints, nodes.

“Shell” (thickness-Material): negative/positive, symmetric: add material or thickness
Check and adjust normals: in Rhino: “ShowDir”, in Grasshopper: “Unify mesh”, “FlipMesh”

Add “disassemble” and “disassemble shell”component  to be able to see shell in Rhino viewport

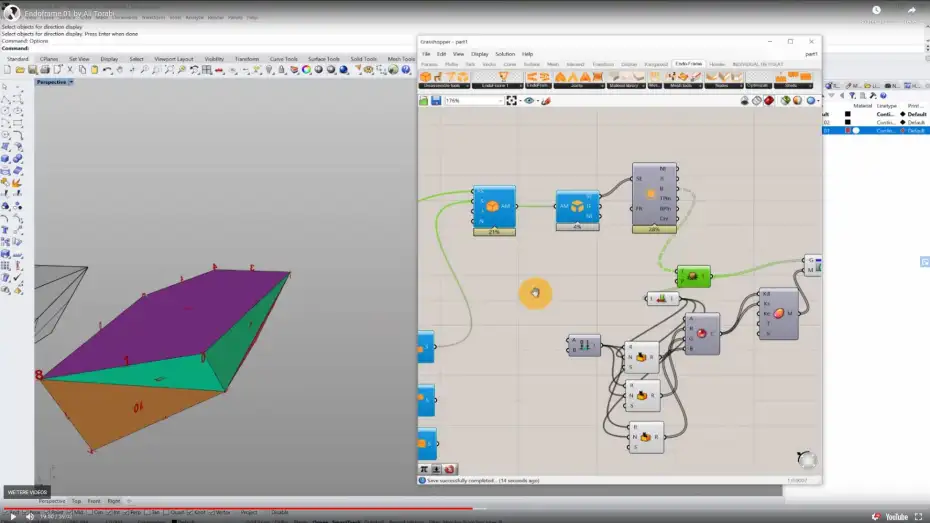

Add random color to shell: add component “custom preview” and “create material”
Add component “RGB” + “Random”
“Construct Domain” for RGB range 0-255 and Seed RGB

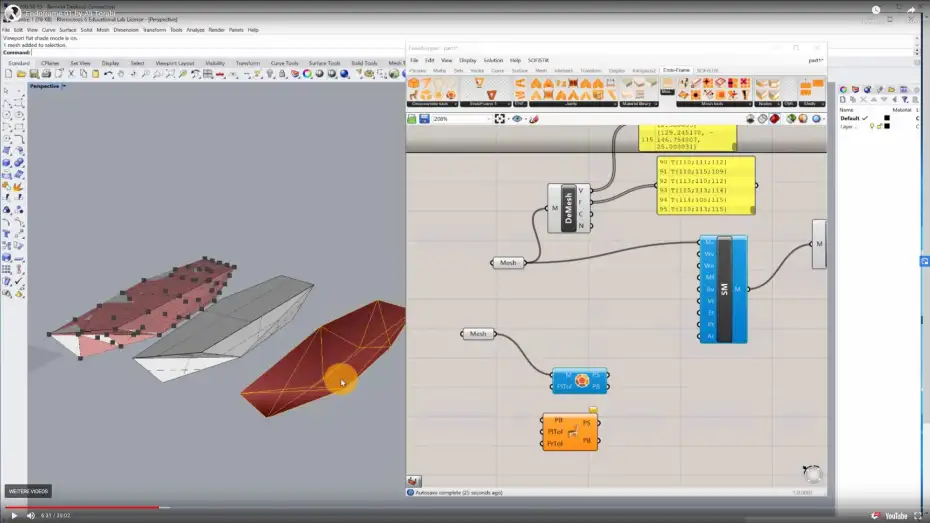

Add exploded view for better understanding:
“Deconstruct plane” + “move” Z-plane

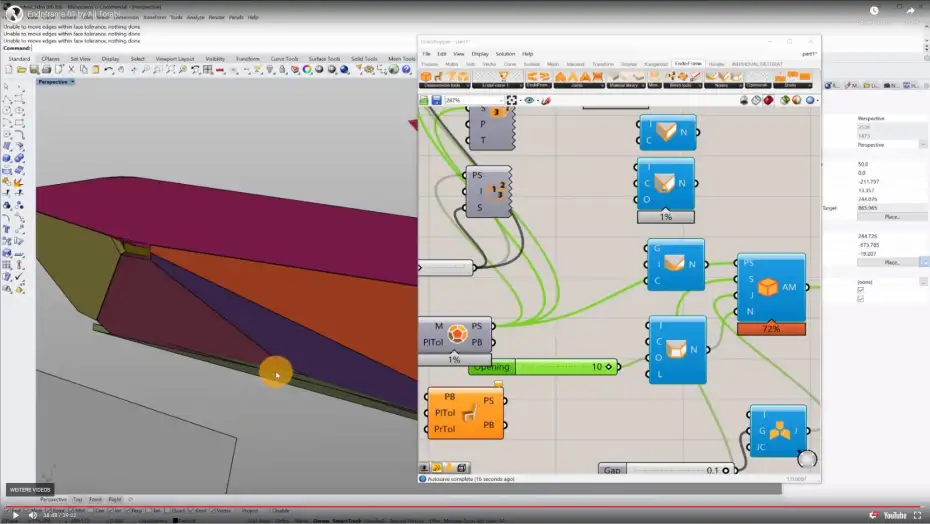

Joint-elements: add gap between joints and color joints in black with “Custom preview” and “Wireframe”

Node-elements: Joints are controlled by node-elements for optimizing digital production.

“Merge face” component if you don´t want to see extra lines with “trim nodes”

Check possible intersections of edges in Rhino with BAKE and “intersect” command.

Compare different node components: multi-trimm, null trim, open node (if nothing else is working)…

In next video: How can you choose different nodes in one object: show note numbers, create list
