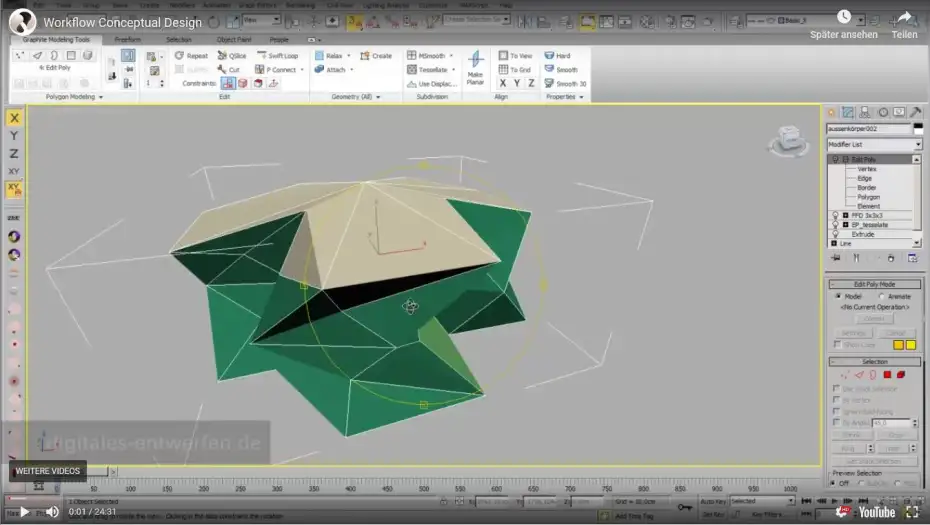

Workflow Conceptual Design (german language)

Built Designexample: Line, Extrude, Tesselate, FFD, Cut

Create “Grid Structure” with “Inset” in “animate mode”, Det

Create “Panel surfaces” (windows…) with “Detach” Polygons

Edit “Grid structure”: “Shell-Modifier” Outer amount

Edit “Panel surfaces”: windows (shell, material), surface panels (inset, extrude, Shell, Material)

Create floor plans with section-spline (best if 3d modell is on origin with its base)

Edit and optimize section splines (weld) for 3D extrusion (face extude, shell)

Create section plane for export to CAD

“Use slice modifier” and “Cap hole” for 3d section in perspective

First visualization of conceptual design

Optimize sectioning for floor plan (2 sectionings for top/ bottom)
