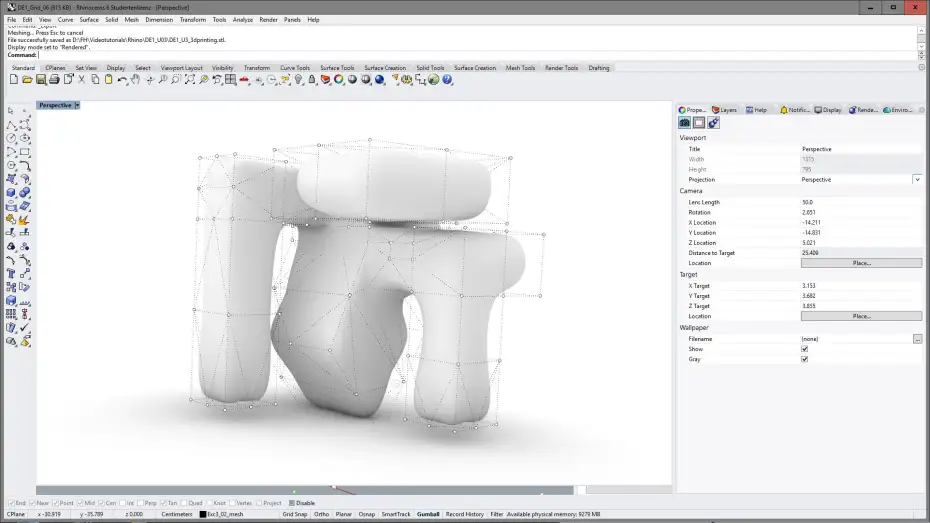

Excercise 3 (DE1): from surfaces to objects (24min) Empfehlen Close/open videochapter open lightbox close lightbox Autostop for next chapter on/off prev-chapter play/pause next-chapter Draw point grid 10 x 10 x 10 cm. This dimension is for 3d printing.0:0 min “Gumball extrude”: select with STRG/Shift surface and extrude with gumball. Move or extrude surfaces further after created an object.2:18 min Extrude tilted planar surfaces:Extrude with gumball paralell to axis.Extrude along normal of surface: “Box/Extrude surface”4:41 min Draw boxes with boxtool.6:28 min Reorganize layer structure for excercise 3 and correct mistakes: duplicate layer and objects.7:50 min Boolean operation Union: union all objects to one object. Boolean operation Difference: substract objects from each other.9:21 min CMD “mesh”: Convert polygon to mesh to be able to use the object for subdivision.11:41 min Subdivision CMD “SubDFromMesh”: create organic freeform object See problems with touching, but not intersecting areas.13:31 min Subdivision with none unioned single objects (several single objects). Select with selection menue.14:35 min Optimize object for subdivision: no touching objects on edges but on surfaces anymore17:23 min More functions for subdivision: CMD “Subdivide”: increase level of subdivision (2 is max right now) CMD “PointsOn”: use control points to transform shape21:47 min Export mesh (!) object for 3d printing as .STL file.23:48 min Leave a Reply Cancel replyYou must be logged in to post a comment.By submitting a comment on this page you agree that your name and comment will be published.
