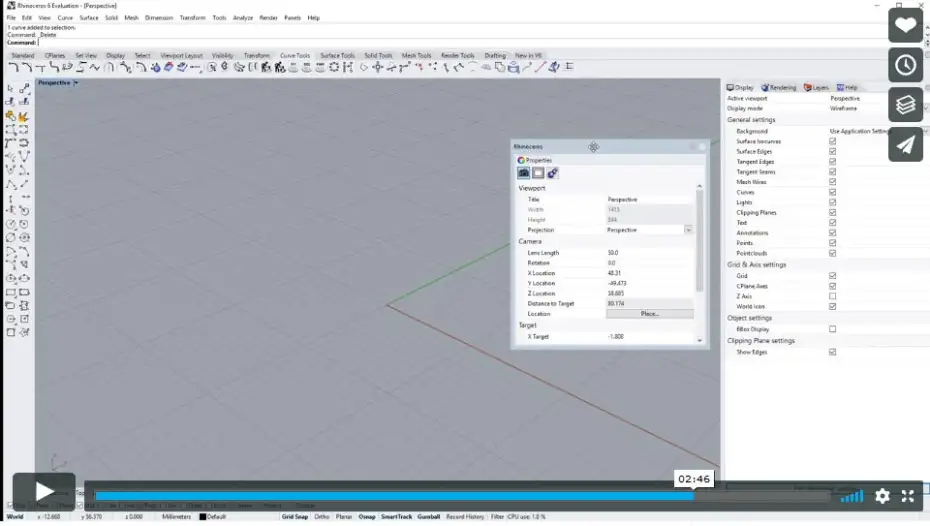

Rhino 6: Overview of the user interface (4min)

This video is produced by Rhino Tutorials: Brian James

Autostop for next chapter on/off prev-chapter play/pause next-chapter -15 +15

4 Viewport navigation: perspective, top, front, right. Zoom: hold CTRL (STRG) + move right mouse, Pan: SHIFT + move right mouse + Turn: move right mouse

0:0 min

Maximize viewport: “DBL click viewport name”, cycle through viewports: viewport tabs or CTRL-TAB

0:48 min

Select objects: left mouse, select controlpoints with second mouse click, select sub object Status bar options: Gumball, Gridsnap, OSnap (snaps to objects)(surface/lines/points) with CTRL (STRG) + SHIFT

1:5 min

Features are commands: access via toolbar groups, Dropdown menus, Command line.

1:45 min

Panels on the right: show/hide (right mouse), float and reorganize

2:22 min

Options for viewport dropdown: Displaymodes (Wireframe, Shades…), View of the viewport, construction plane…

2:55 min
