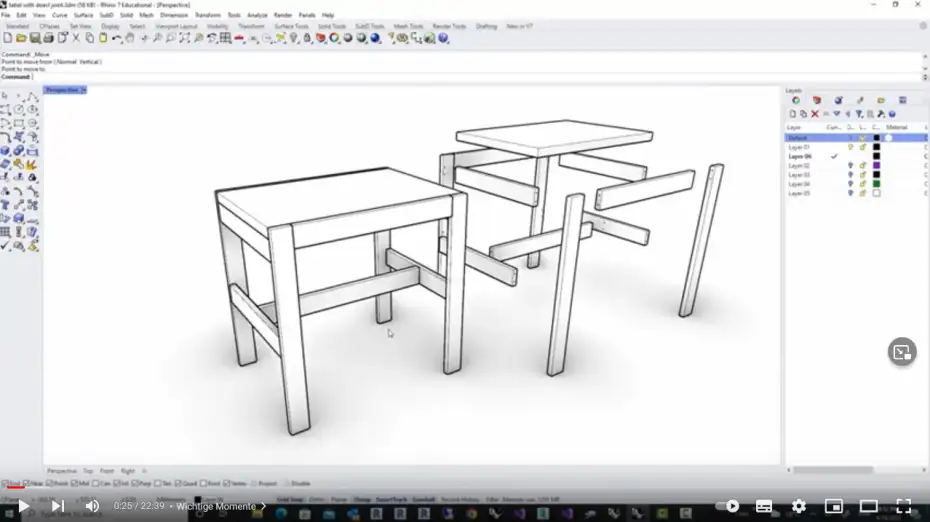

Biber: Use of different material thickness in a single assembly

Introduction

Assign “Attribute user text” in Rhino for filtering in Biber:

“Filter polygons by attributes” component: apply different kind of features to attributes like thickess, shell-type…

Component “Dowel Butt Joint”

Filter out with component ” Edges by number of connected polygons”

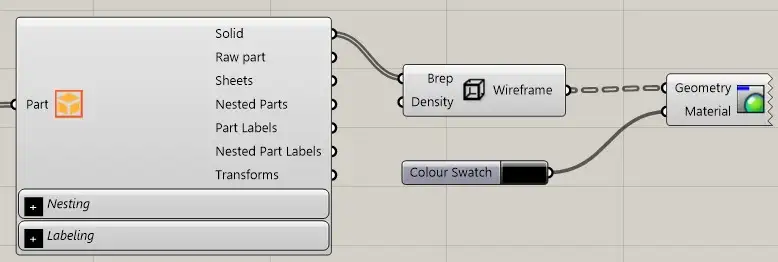

Preview to not always bake the geometry:

Change “Configuration” in Joint

Use “Butt joint” with “filter edges by attributes”

Get amount and dimensions of dowels: disassemble”joints” from Assembly/joints”. Bake “Geometries”.

Component “List length”: count amount of Dowels
