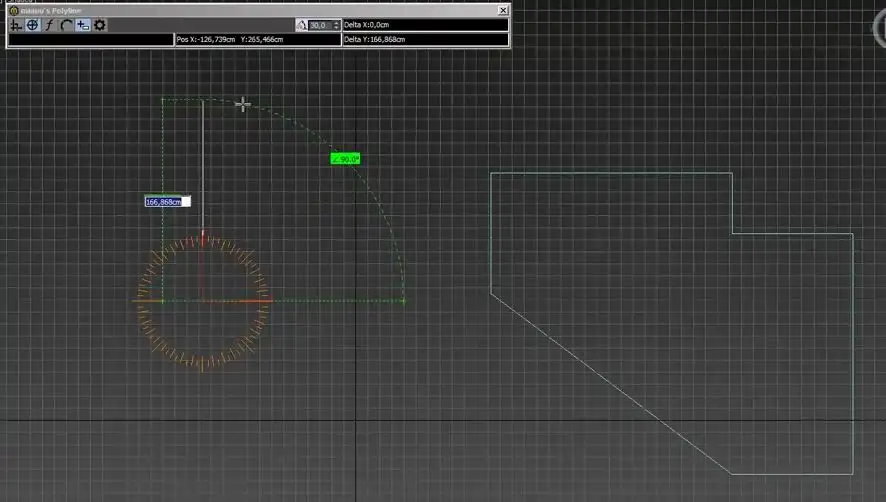

Create splines precisely with measurements and angles.

Miauu´s polylinetool is a maxsprict to create splines precisely with measurements and angles.

More infos and where to buy: link

Settings
Recommended settings for polyline-script, if you use “,” for decimal

Possible issues with installation
If you get the error “unable to creat main folder!” than you have to set the adminstration rights for your 3ds max files like in screenshot:

Close/open videochapter

Intro

0:0 min

How to install “polylinetool” and set it up

0:15 min

“Ortho mode” – it constrains drawn lines to the horizontal or the vertical (relative coordination)

1:53 min

Use “dynamic mode” for entering values next to mouse

3:7 min

Difference between relative and absolut coordination

4:5 min

“Polar Mode” – it constrain your cursor movement into predefined angles

4:37 min

“Freehand mode” – create points without any constraints

5:13 min

“Arc mode” – create an arc that is a part of the current spline

6:6 min

Shortcuts “O,P,F,A”

6:43 min

Enter X/Y value in command line with “X,Y”

7:7 min

Swap between polar (STRG) and orthomode (shift) while drawing

8:29 min

Enter length and angle with “length(TAB)angle”

8:57 min

Create splines precisely with measurements and angles.
