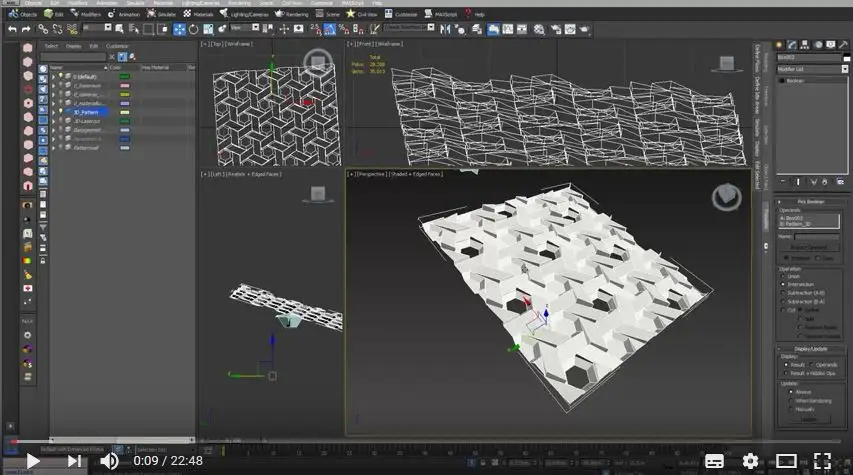

Disassemble 3D pattern in para3D and prepare for lasercutting

optimize 3D object: weld vertices, use modifier “STL-check (not shown in video)

Use different materials for better visual control

Use para3D with “disassemble node” without thickness for laser cutter: basic settings

Use labeling system in para3D

Create plane as packing area and use “packing controller”

Reorganize packing area manually

Export to autocad as DWG

Change from isometric view to top view

Load preset file in Illustrator and import packing-DWG (change scale to 1 unit = 1cm)

Change contour to 0,1 pt and to color red (schneiden)

Sent to lasercutter via “printmenue”
