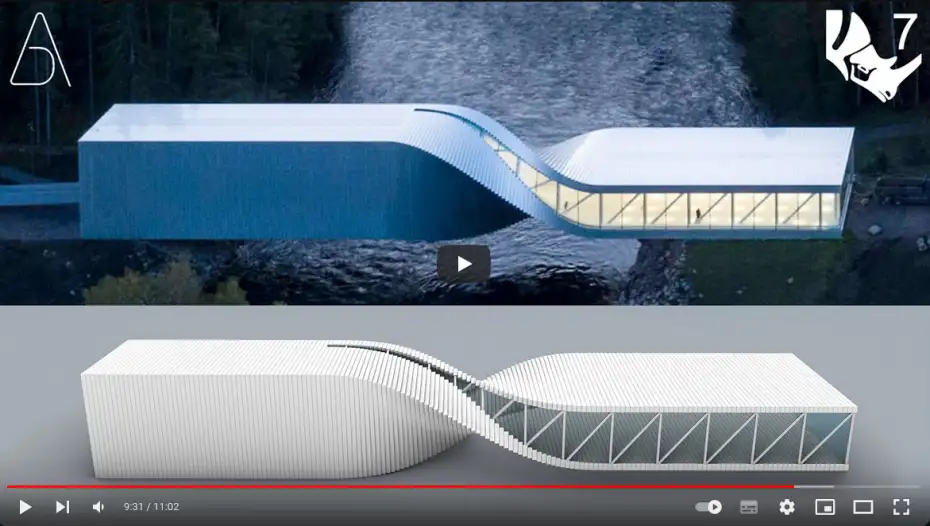

Modelling “The Twist – BIG” by Bjarke Ingels Architecture Adam Dereli Empfehlen Dimensionen sind in cm. Close/open videochapter By playing this video, you load content from youtube. Please accept youtube in your privacy settings. Change privacy settings box with 2000 x 1000 x 450cmmirrormove new box with distance 1800cmturn 90 degreescale 1d: 350 from midpointscale1d: 250 from midpoint0:0 min Delete 2 surfacesBlendSrf: blend 4 surfacesdelete frontsurfacesExtractSrf: extract 4 surfaces for window surface1:04 min Draw curve on topmove curvecopy curve moved downscale curve if necessaryDupEdge: duplicate edge on other sidemove duplicate edgemirror duplicate edge to bottom in right viewBlendCrv: blend two curves with continuity CurvatureSplitFace: split face of twisted surface with two curvesSelCrv: Select all curves and move to new layer (Change object layer) 2:13 min rotate curve to 90 degree side with copy and without projectmove endpoint to surface endSplitFace: Split faces to create windowareaExplode surface into 3 surfacesIsolateLock SurfacesMove vertical Curve to create wall distanceExtrudeCrv: build corner wall (choose direction)Unlock04:0 min Forgot to split and explode surface. Could have been done much earlier at min 2…Join curved surfaces for windowglasadd windowglass to new layerhide windowglassselCrv: select curves and deleteJoin all surfaces to OpenPolySurfaceOffsetSrf: flip direction & distance 20 for closedSolidPolysurfacemerge all coplanar surfacesOffsetSrf with glas: 10cmplaying around….5:07 min Contour in frontview: 1. and 2. distance: 30cmExtrudeCrv: distance 27cmSwitch of basic building layerDisplaymode Renderedswitch on Layer window and move in windows 5cm7:20 min apply materialsFilletEdge: select all edges for rounded corners: radius 2cm EVTL. NICHT MACHEN, DA ZU PERFORMANCE LASTIG!Turntable: look at rotating object8:38 min Leave a Reply Cancel replyYou must be logged in to post a comment.
