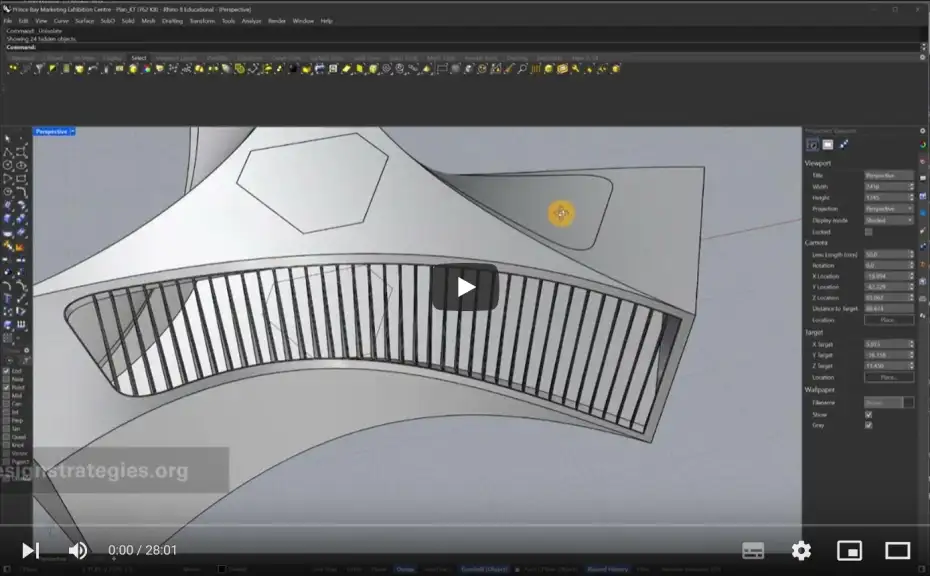

Prince Bay Marketing Exhibition Centre from AECOM architecture by Adam Dereli

• Vertical rectangle with hight: 20
• Offset curve “In CPlane”
• Scale with basepoint “Center of rectangle”: 12

• Loft curves
• Enable “Record history”
• BlendSrf/Tangency

• Three viewports
• Select vertices with CTRL/Shift and move to fit the shape of the building

• set Move/XYZ-Koordinates “set Z” with 3 points to make them planar
• “PlanarSrf”: create surface with 3 planar points
• Extrude side-edges in Z direction
• Trim: Create rectangular plane  to cut of extrusion
• delete offeset surfaces and all curves with select

• ZS-Zoom selected
• “DupBorder” for glassurface
• OffsetCrvOnSrf: offsets following the selected surface: Number 1, distance 1
• Polyline to reduce size of windowsurface
• Trim: select new curve as trimcurve, delete exctending curves
• DeleteSubCrv: prepare for round edges, 3/meters
• Blend curve to create round edges
• select all curvesegments and join

• Pull: pull curve to make it fit on surface
• delete first curve
• SplitFace: select face and select “Curves” in menue
• explode surface
• hide glassurface
• Repeat with all 3 surfaces

• Draw polylines at buttom to complete obhect
• select all buttom curves
• PlanarSrf: select all buttom curves and create surface
• PlanarSrf: vertical surfaces (STRG/Shift)
• create “circumscribed poylgon” for top window (6-Hexagon”
• Adjust vertices with “Show control points”
• extrude curve
• Split top surface with Hexagon

seperate into layers and visualize
