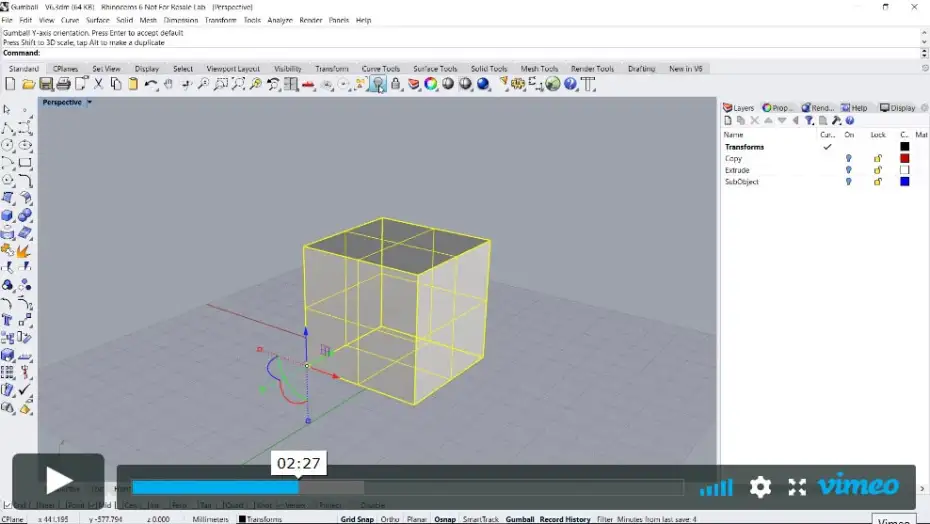

How to use the Gumball in Rhino 6 (8min)

In this video tutorial, learn the basics of using the Gumball manipulator in Rhino 6 (move, rotate, scale), as well as some of the advanced features, such as copying, extruding and sub-object editing.

This Video is publishes by Rhino Tutorials

Close/open videochapter

Move and rotate via drag arrows or click arrows for numerical input. Red-Green-Blue (RGB) = XYZ-Axis

0:0 min

Scale objects with scale handles. Shift-key to scale uniformly

0:59 min

Axis plane indicator to select and move in two selected directions.

1:30 min

Edit Gumball with right mouseklick (and hold longer!) on gumball-origin: relocate, snappy/smooth dragging, allign or type command into commandline.

1:42 min

Copy with hold “Alt-Key”. Enter number while still holding mouse (Shows + symbol)

3:22 min

Extrude via extrusion icon (small dot): from point to line to surface to solid (+ hold shift-key for both side extrusion)

4:07 min

Copy edges and surfaces on subobject level: press “Control-Shift” for subobjectlevel, than drag edge/Surface with “Alt”-key for copy.

5:15 min

Scale and extrude on subobject level edge and surface (hold SHIFT for uniform scale) .

6:26 min
