Rhino: material texture mapping

This video shows you the principles of texture mapping in Rhino 3d and how to export them to programs like Twinmotion.

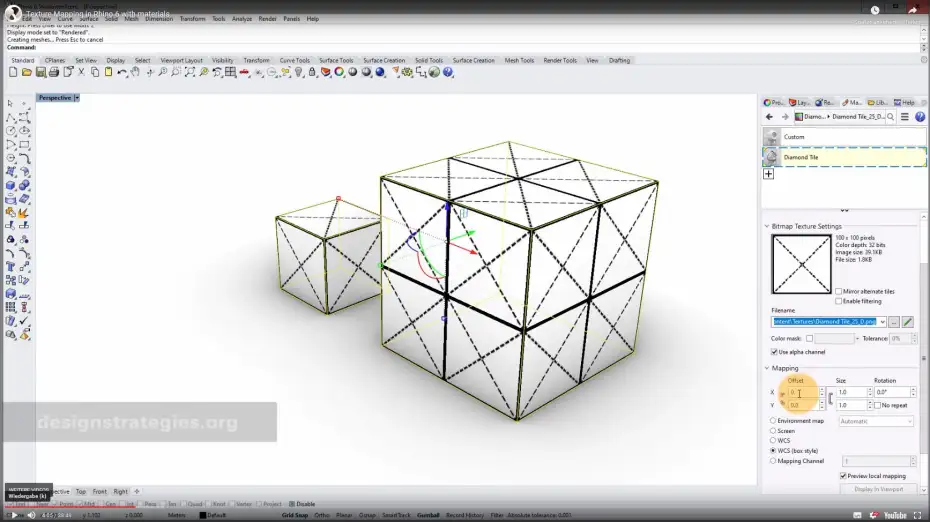

Mapping with WCS Mapping (world coordinate system) in real world scale

Close/open videochapter

Autostop for next chapter on/off prev-chapter play/pause next-chapter -15 +15

Introduction: creat simple box 1x 1x 1m and add simple pattern-material.

0:0 min

Settings in WCS: Size, rotate, Position. All settings are related to all objects with same material.

1:53 min

Add material thickness and edge softening for visualisation.

5:25 min

Autostop for next chapter on/off prev-chapter play/pause next-chapter -15 +15

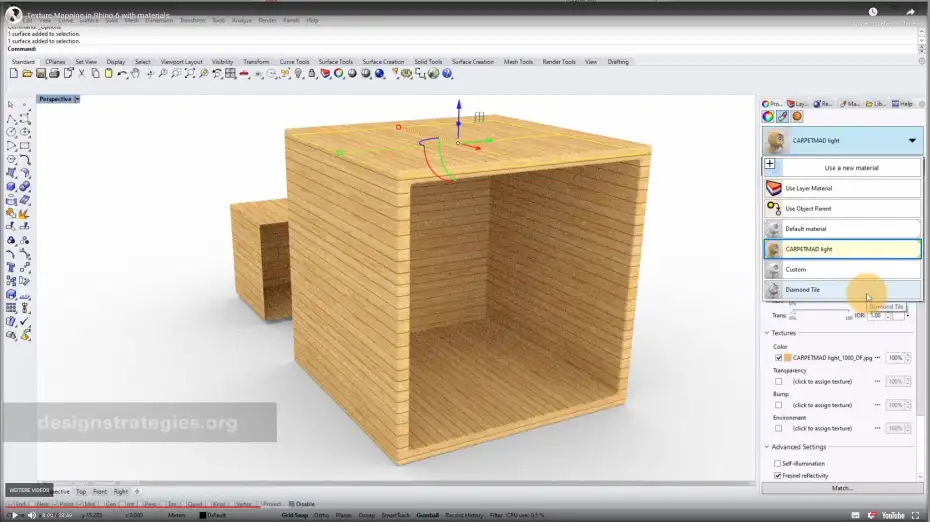

Several textures for one object as multisub-material works with polysurfaces but not with mesh objects.

7:35 min

Decal textures: textures on object not related to polysurfaces structure.

9:9 min

Mesh objects: subobject materials and decal don´t work with mesh, but thickness and edge smoothing.

11:0 min

Mapping textures with mapping channel

Close/open videochapter

Autostop for next chapter on/off prev-chapter play/pause next-chapter -15 +15

Mapping channel: important setting to be able to use texture mapping on object level.Works with tiling instead of real world scaling for materials. One texture works individual for several objects.

11:42 min

Settings for texture mapping on object level with “mapping channel”

13:22 min

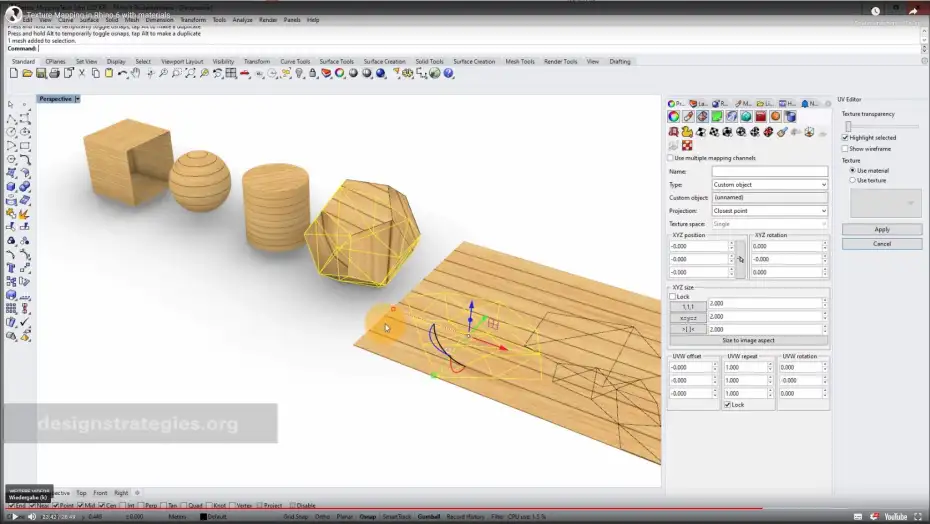

Mapping for more complex objects with “unwrap” and UV editor”.

20:20 min

Autostop for next chapter on/off prev-chapter play/pause next-chapter -15 +15

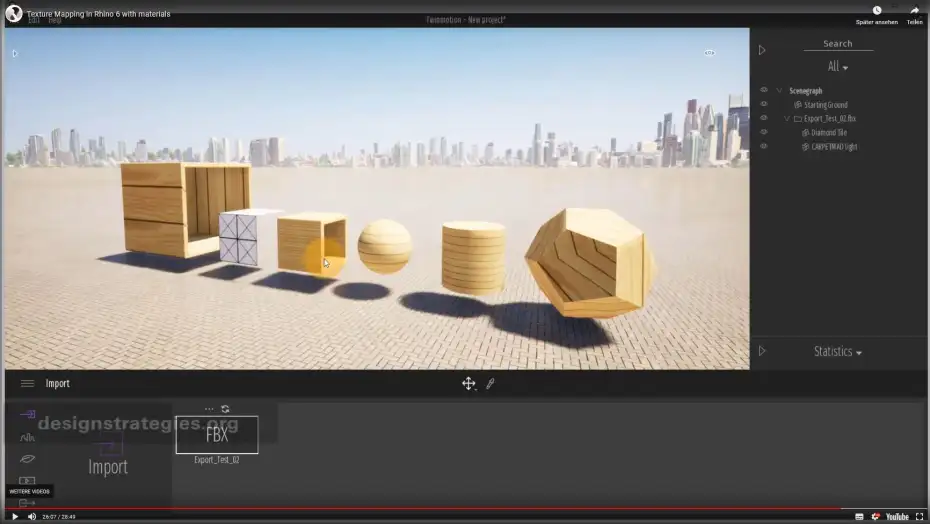

Export as FBX to software Twinmotion. Problem: Multi subobjects don´t work-! Solution: “explode” object in Rhino. Decals don´t work for export in Rhino.

0:0 min

Rhino: material texture mapping

Mapping with WCS Mapping (world coordinate system) in real world scale

Mapping textures with mapping channel
