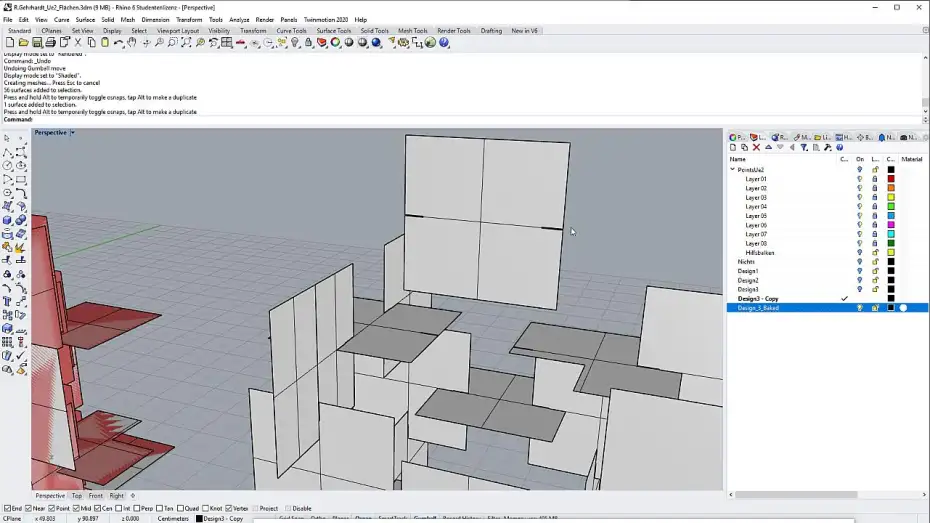

Rhino6: How to prepare 3d Modells with Grasshopper “RegionSlots” for digital production

This video shows you what to do if you have surfaces that need slots for digital production.You need the internal Rhino program Grashopper for parametric design and no pepakura.

Download Grashopper-File: Region Slot

Parametric Design with grashopper

Close/open videochapter

setup display and Nodes:

Intersect/Region slots
Brep
Number for thickness

0:0 min

Bake grashopper into Rhino in new layer

4:29 min

Project surfaces on planar X/Y axis with nodes:

transform/orient
is planar

5:48 min

Bake oriented surfaces in Rhino and nest them in lasercutting rectangle 70 x 45cm by hand

8:05 min

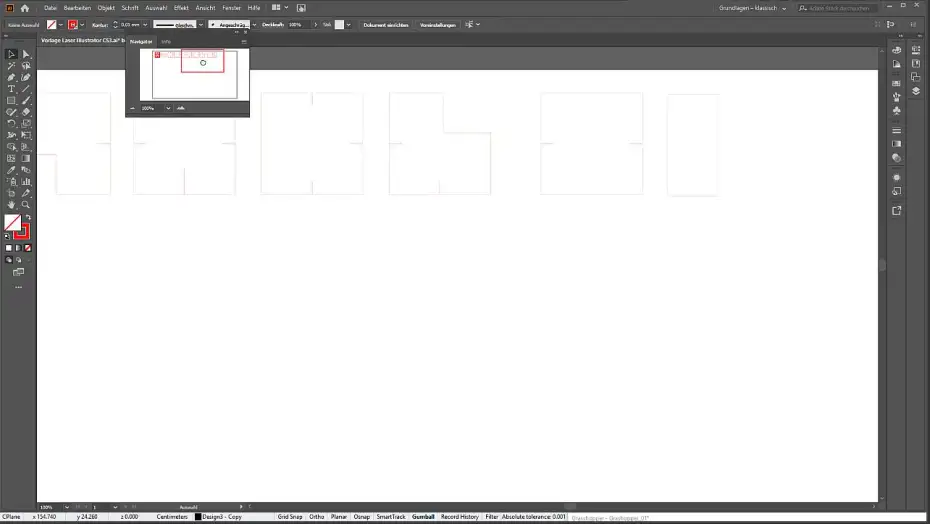

Export selected to illustrator as dfx: before switch of “show isocurves”

Use Cutting template of college in illustrator
Place DXF and scale in Illustrator (cm to mm)
select “Cutting” color
Change contour thickness to 0.01
Save for lasercutting as Illustrator 4.0

9:58 min

2. designexample: issues with mesh:

convert to polysurface
change direction of surfaces
corner issues

14:20 min

3. designexample: how to mix “region slots” with pepakura export

20:41 min

Summary: everything in 3 min…;-)

23:0 min
