Advanced but easy to use sectioning method with para3D

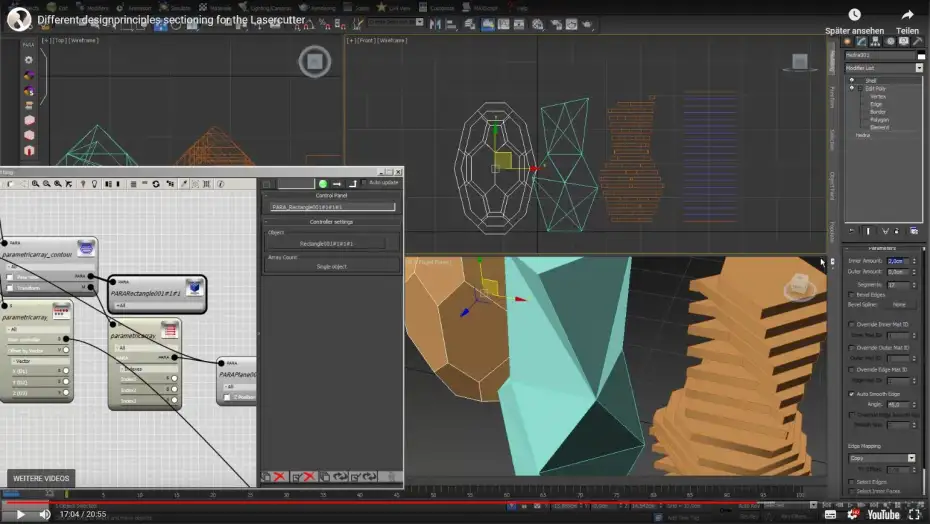

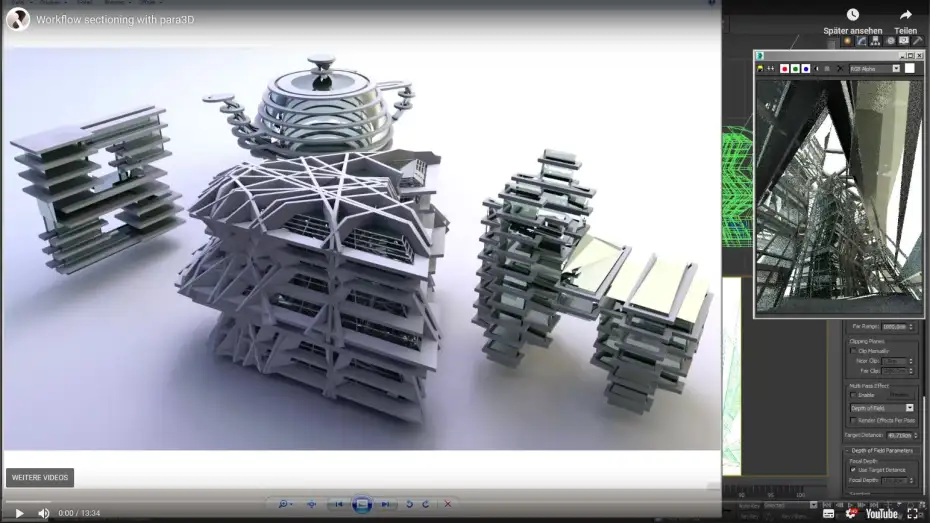

These videos show how to produce sectionings in para 3D (4.0 and higher) with “contour generator” and as an alternative with “compound” as a node. These methods are easy to use, fast and flexible in terms of changing all parameters.

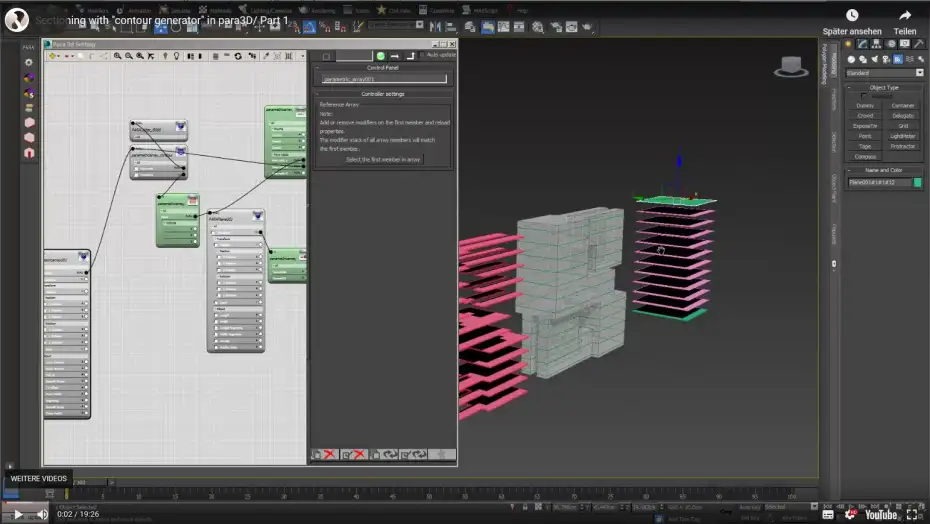

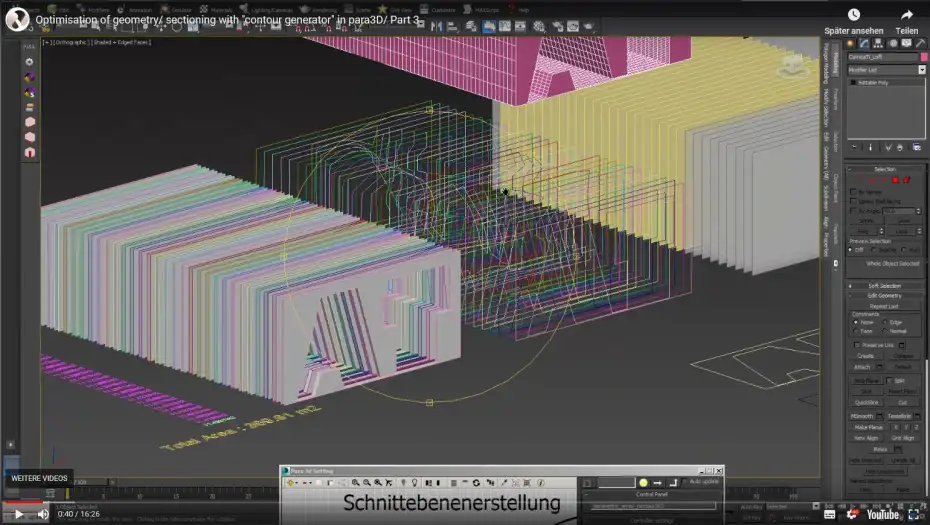

1. method: “Contour generator” is based on sectioning planes and will create splines. With “contour generator” you´re on top able to optimize the topologyf your geometry/sectionings.

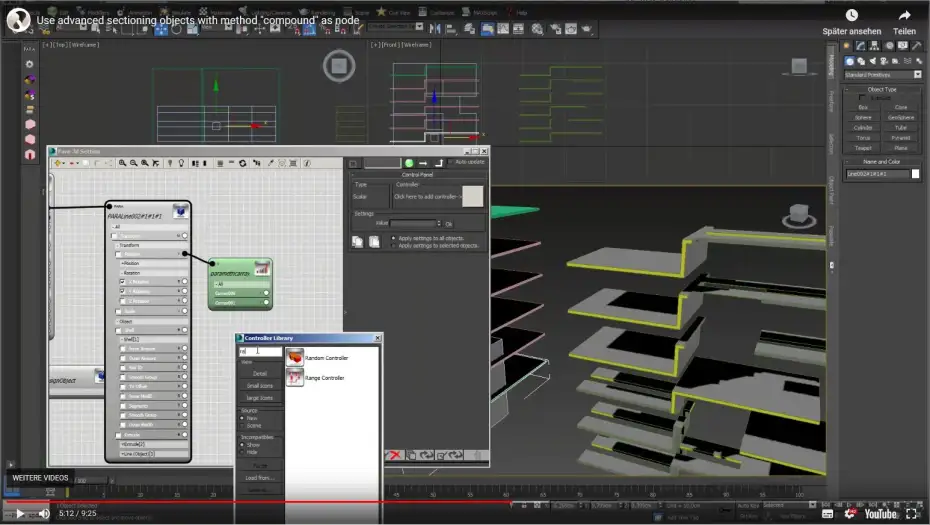

2. method: Compound method  as boolean intersection is based on solid objects and will create solid objects. Here you can also use sectioningobjects with more advanced shape than only a plane.
