Radial wafflestructure in para3d with graph- and interpolate controller

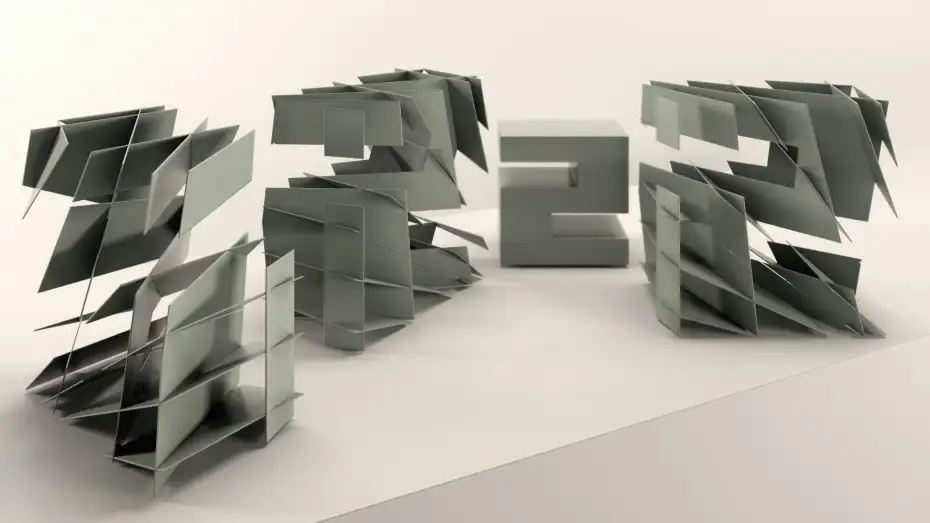

This video shows you the workflow of how to create a wafflestructure with radial elements.

Generall rule for all controllers: best, if you put the controller on one axis like X, Y, or Z “S” (Scalar) and not on “V” (vector)

Good controllers for wafflestructure (array sectioning planes):

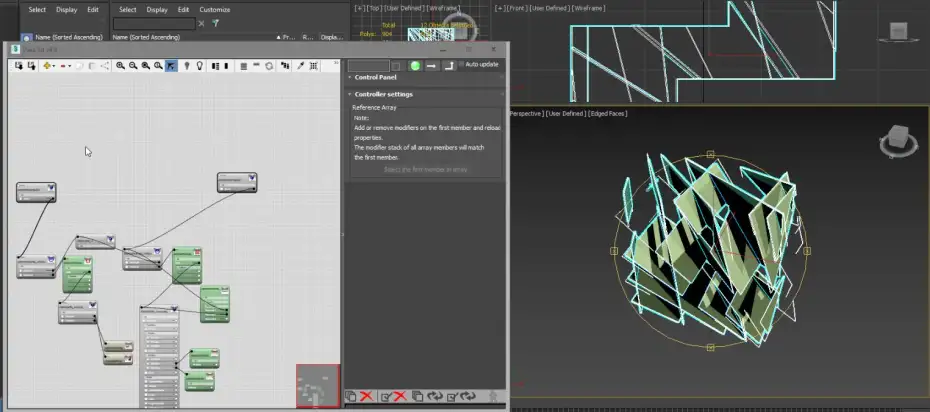

  • Interpolate controller for rotation: you can select several sectioning planes in one array to interpolate
  • Graph controller: you can set graph points and adjust ist visually to adjust sectioning planes

Errors in compund not automatically menas, that your wafflew structure failed. It could just be, that there was no intersection and you had a subtraction with “0”.
